Hybrid Tee



1. Structure and Principles of Operation



magic tee에 대한 이미지 검색결과

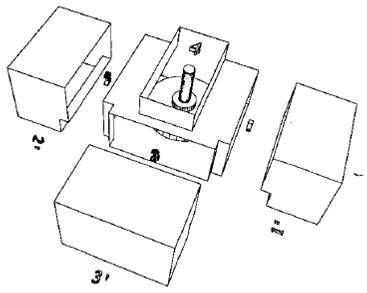

Waveguide E-type junction  Waveguide E-type junction E fields



Waveguide H-type junction  Waveguide H-type junction electric fields

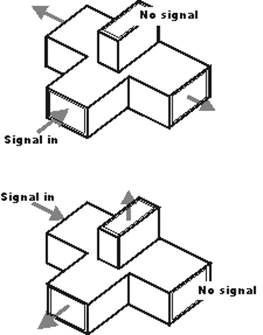

Magic T waveguide junction input / output



2. Applications

Mixing

Duplexing

Impedance measurements

Radar transmitters





관련 이미지

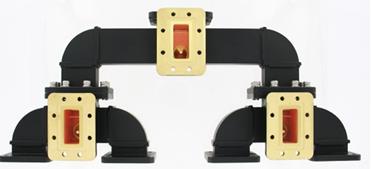

Figure: Magic tees for power combining



Figure: Magic tees for radar transceivers



Figure: Magic tees in a monopulse compratator





Figure: Magic tees in a monopulse compratator



Figure: Magic tees in a power combiner network

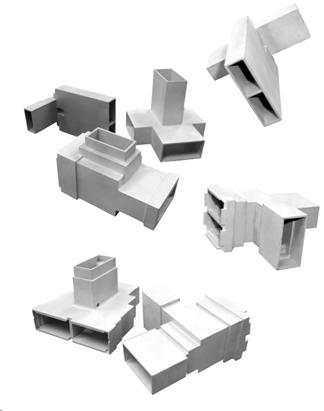

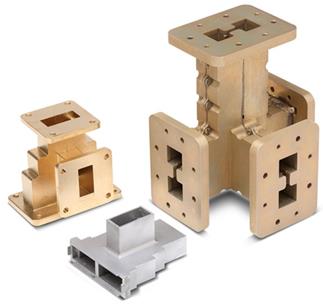

3. Various Forms of Waveguide Magic Tee

Figure: Mega Industries magic tee

Fig: MDL magic tee products



Sylatech Tees

Figure: Waveguide magic-T by Sylatech



4. Design of Hybrid Tee

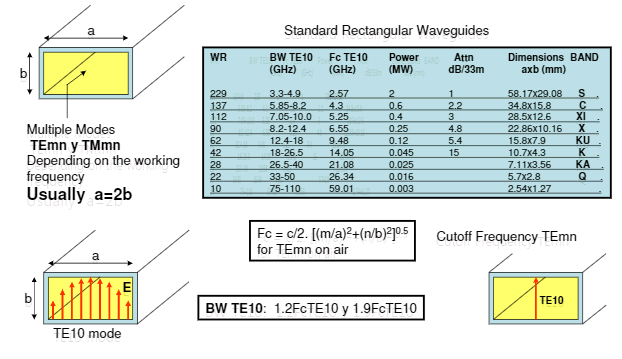

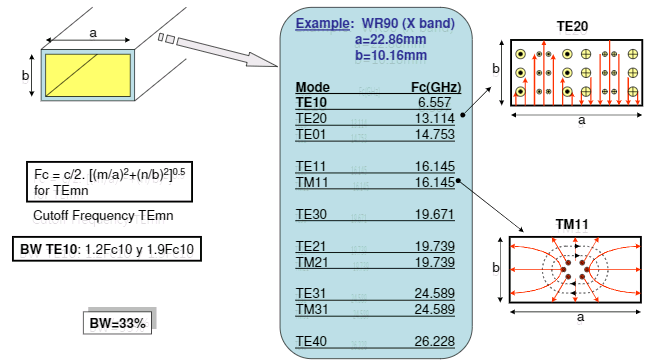

1) Waveguide design

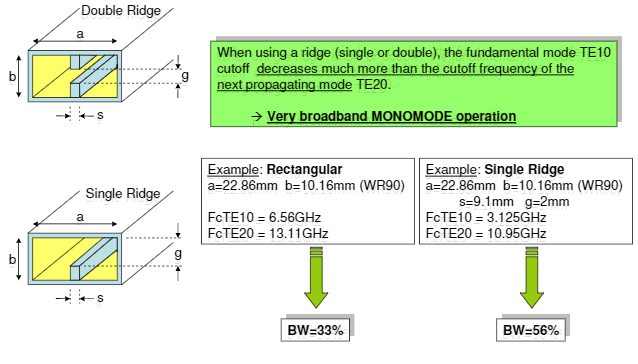

2) Double-ridge waveguide design

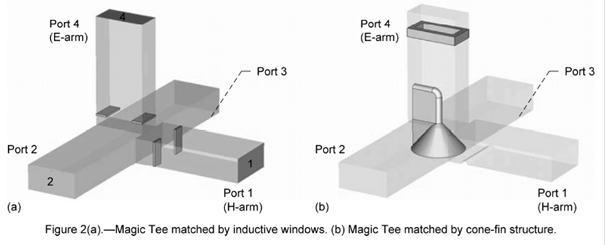

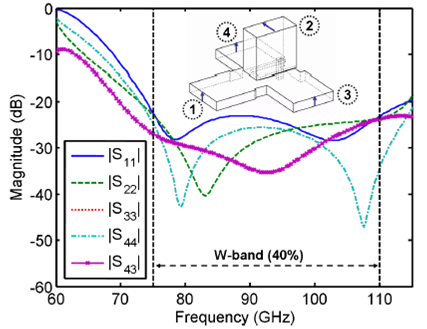

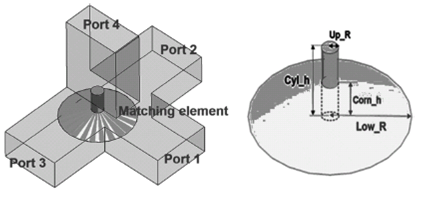

3) Junction impedance matching

[Electronics Technician - Integrated Publishing]



[Vedan(06)]



[Baek(11)]

[Beyer(03)]



[Hwang(09)]



[Leal-Sevillano(13)]



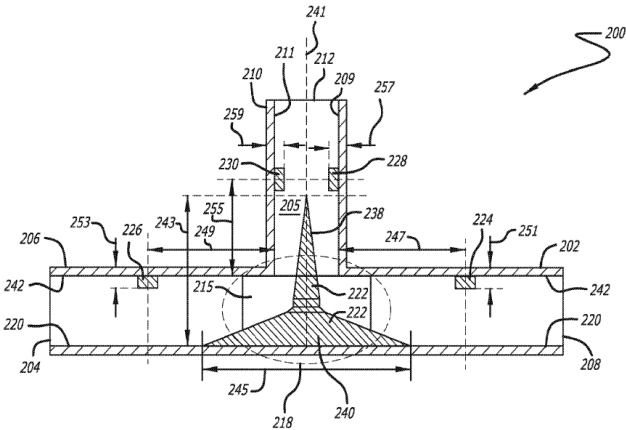

[US9997820]

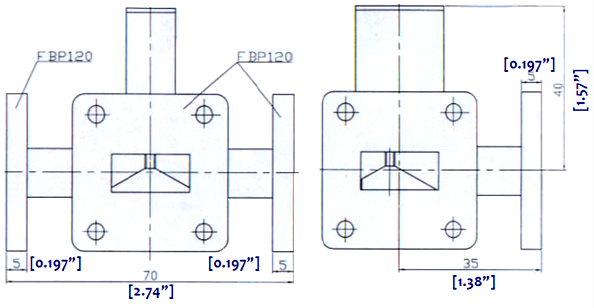

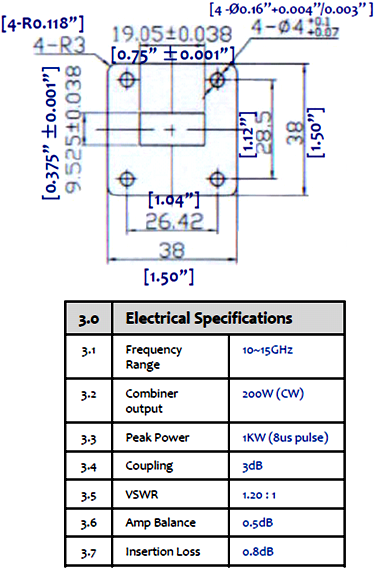

[RF-Lambda RWCB75W2T]
