Installing PSpice 17.2
(ÁÖÀÇ) ÄÄÇ»ÅÍ µå¶óÀ̺ê
ÆÄÀÏ°æ·Î¿¡
ÇѱÛÀÌ
ÀÖÀ¸¸é
½ÇÇàµÇÁö
¾ÊÀ½.
1. Download ¡®17.2_OrCAD_Lite_Capture_PSpice.zip¡¯, a zip file with the
student/lite version of OrCAD PSpice 17.2 and supporting files/programs, from
webpage under the link or click 17.2_OrCAD_Lite_Capture_PSpice_S038.zip.
2. Place the downloaded ¡®17.2_OrCAD_Lite_Capture_PSpice.zip¡¯ in a
directory/folder selected by you (e.g., use File Explorer).

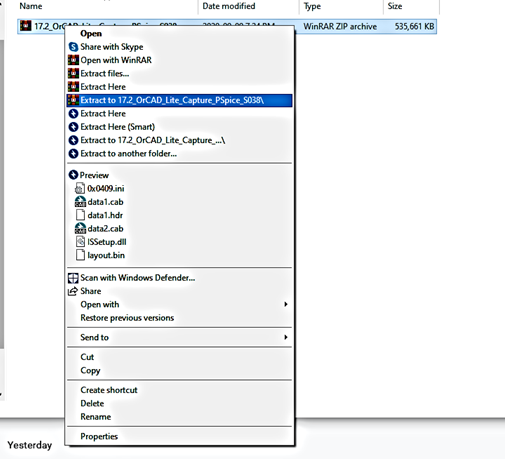

3. Using File Explorer go to appropriate directory/folder (if necessary)
and right click on ¡®17.2_OrCAD_Lite_Capture_PSpice.zip¡¯ ¨ select Extract All ¡¦ A subfolder or directory
named 17.2_OrCAD_Lite_Capture_PSpice should be created.
%20installation.files/image002.png)
%20installation.files/image004.png)
4. Go into subfolder or directory named 17.2_OrCAD_Lite_Capture_PSpice.
Now, double click ¡®setup.exe¡¯ to begin installation.

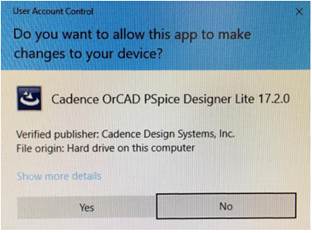

5. You should see the window below. Click ¡®Yes¡¯
%20installation.files/image006.jpg)

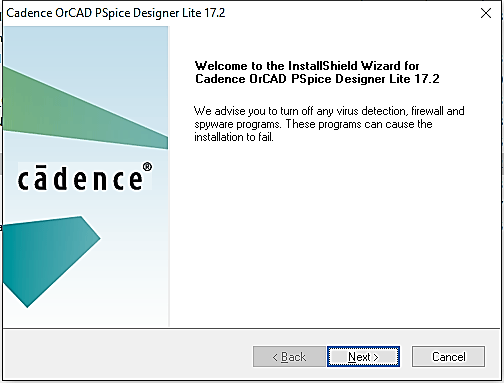

6. At window, click ¡®Next >¡¯
%20installation.files/image007.png)

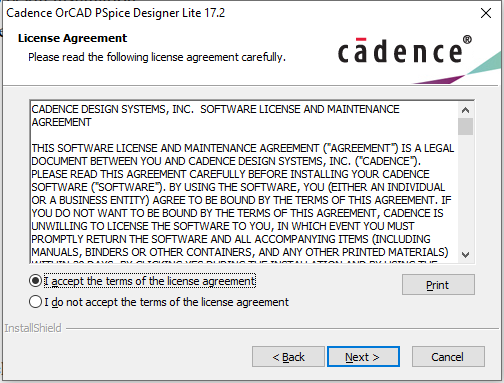

7. At window, click button to accept terms of the license agreement. Then,
click ¡®Next >¡¯.
%20installation.files/image008.png)

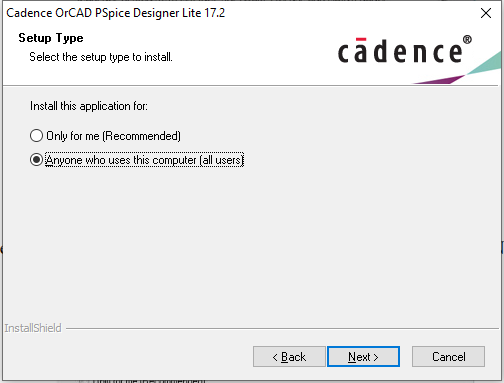

8. At window, select ¡®Anyone who uses this computer (all users)¡¯ button.
Click ¡®Next >¡¯.
%20installation.files/image009.png)

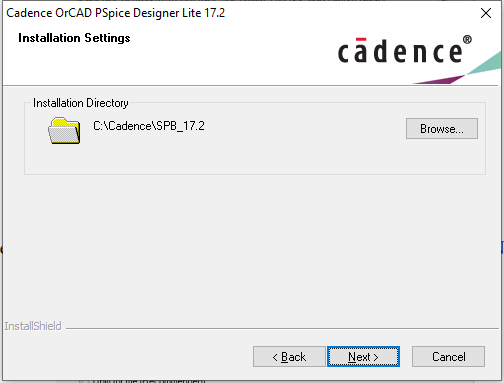

9. At window, click ¡®Next
>¡¯. [Note: It wouldn¡¯t work when I used ¡®Browse¡¦¡¯ to customize.]
%20installation.files/image010.png)

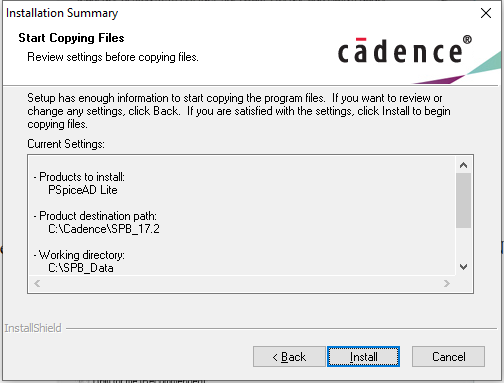

10. At window, click
¡®Install¡¯
%20installation.files/image011.png)

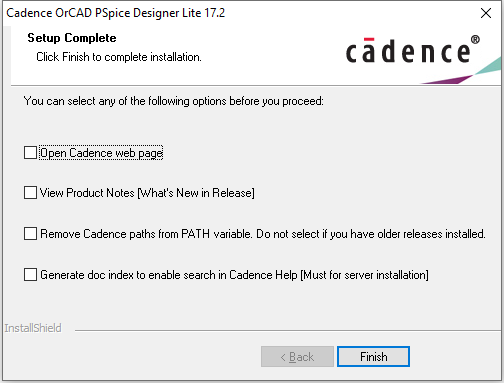

11. The installation will
take a couple minutes. At window, click ¡®Finish¡¯.
%20installation.files/image012.png)
