ICT083 Antenna Design

Patch Antennas



I. Theory

1. History

First published: G. Deschamps and W. Sichak, "Microstrip microwave antennas", Proc. 3rd Symp. USAF Antenna Research and Development Program, Oct. 18-22, 1953.

First patented: H. Gutton and G. Baissinot, "Flat aerial for ultra high frequencies", French Patent No. 703 113, 1955.

Widely used since 1970's.



2. Rectangular Patch Antenna

2.1 Structure

- Ground plane

- Dielectric substrate

- Patch

- Feeding probe

ĸó

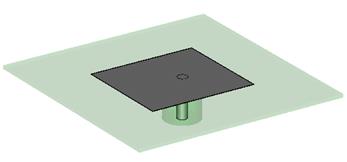

Figure: Patch antenna structure [Kopper(2016, thesis)]



2.2 Principles of Operation

- Half-wave dipole: Center-fed, Rin = 72 ¥Ø (thin-wire dipole), 10% bandwidth

- Stip dipole: Center-fed, Rin = 50 ¥Ø (printed on PCB), 5% bandwidth

- Rectangular patch antenna: Probe-fed, Rin = 50 ¥Ø (printed on PCB), 2% bandwidth

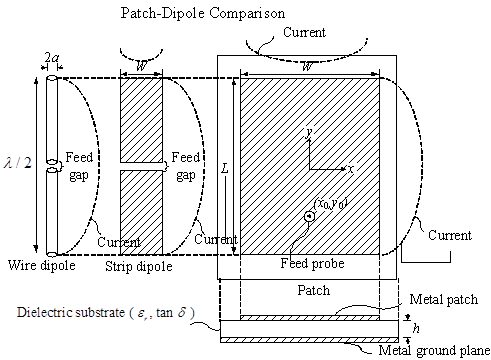

Figure: Similarities between a wire dipole [CST Studio], a strip dipole [Ferreira(2012)], and a rectangular patch antenna [www.mweda.com]



comparison

Figure: Current distributions on a wire dipole, a strip dipole, and a rectangular patch antenna



1

Figure: Current distribution on a rectangular patch antenna

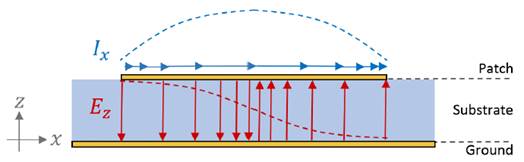

Figure: Electric field and surface current distributions on a rectangular patch antenna [Kopper(2016, thesis)]



2.3 Feeding Methods

- Patch edge feeding by microstrip line

       Ä¸Ã³

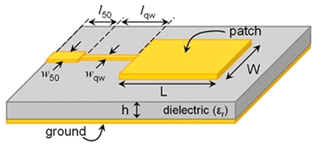

Figure: Feeding methods of a patch antenna. Edge feeding [Mishra(2016)], coaxial probe feeding [Mishra(2016)], inset feeding [Islam(2018)], and quarter-wave transformer feeding [EM Talk]



2.4 Design

- Patch mode: TM01-to-z mode

- Patch length



- Patch width



     W > L for higher bandwidth

     W < 2L to avoid TM02 mode excitation

- Feed position





     y0 : Distance from the patch edge



3. Microstrip Line

3.1 Structure and Fields



https://www.safaribooksonline.com/library/view/microstrip-filters-for/9781118002124/OEBPS/images/c04f001.jpg

Figure: Structure and parameters of a microstrip line



https://www.3ds.com/uploads/pics/microstrip-transmission-line-e-field-quasi-tem-mode.png   https://www.3ds.com/uploads/pics/microstrip-transmission-line-h-field-quasi-tem-mode.png

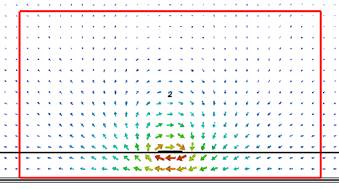

Figure: Electric and magnetic fields in a microstrip line [3DS]



3.2 Design

1) Effective dielectric constant:



2) Characteristic impedance:



3) Guided wavelength:

     : Guided wavelength

     : Wavelength in vacuum

     : Phase constant



     : Wave after traveling a distance L on a transmission line



     : Eelectrical length (radian)



4) Design programs:

- CST Studio wizard

- Source Forge 'mcalc', http://mcalc.sourceforge.net/



Figure: 'mcalc' microstrip line analysis program [Source Forge]



4) Wave port for a microstrip line simulation:

coaxial cable wave port cst studio À̹ÌÁö °Ë»ö°á°ú"

Figure: Wave port set up for a microstrip line [Research Gate]
