Under development since 1982, liabrary of 23,000 parts, multipage schematic editor. One nice touch is that you can view a simulation and interactively change component values and watch the results update right away.

Output graph quality verty good

Lots of Youtube tutorials

설명: 설명: 설명: https://hackaday.com/wp-content/uploads/2020/01/micro1.jpg

[LTSpice: free, analog, Spice-based

LTSpice v17.0.0.10 (2020):

Intro, https://en.wikipedia.org/wiki/LTspice

LTWiki, http://ltwiki.org/index.php?title=Main_Page

Web, https://www.analog.com/en/design-center/design-tools-and-calculators/ltspice-simulator.html

Output graph quality not good

[OrCAD: commercial, EDA

OrCAD v17.4: $2300

Intro, https://en.wikipedia.org/wiki/OrCAD

Web, https://www.orcad.com/resources/orcad-downloads

Output graph quality bad

[PartSim

AC, DC, transient, parametric

Web-based, 다양한 예제, Digi-Key part number로 BOM 생성 가능

[EveryCircuit

Web-based, UI 가장 쉬움. 다양한 예제, $15

[PLECS: commercial, system-level simulation of electrical circuits, power electronics

Intro, https://en.wikipedia.org/wiki/PLECS

Web, https://www.plexim.com/products/plecs

[Qucs: free, open source, mixed-signal, DC to RF

Intro, https://en.wikipedia.org/wiki/Quite_Universal_Circuit_Simulator

Repository

https://github.com/Qucs/qucs

http://qucs.sourceforge.net/download.html ; 프로그램 다운로드

http://repository.londonmet.ac.uk/ ; lots of qucs docoments, Mike Brinson

http://qucs.sourceforge.net/

Graph quality good

해석속도 빠름, Verilog를 이용한 디지털 해석, RF 해석, ibis 모델 기반 signal integrity

[Qucs-S: free, open source, mixed-signal, Spice-based

Intro, https://wiki.opensourceecology.org/wiki/Qucs

Repository

https://ra3xdh.github.io/

https://qucs-s-help.readthedocs.io/en/latest/#

https://github.com/ra3xdh/qucs_s

[Qucs Studio

http://dd6um.darc.de/QucsStudio/

http://qucsstudio.de/

[SapWin: free, symbolic circuit simulator written in C++

Intro, https://en.wikipedia.org/wiki/SapWin

SapWin 4.0 beta (2015)

SapecNG

Web, http://www.prodid.it/Sapwin4/

[TINA: commercial, mixed-signal, Spice-based

Intro, https://en.wikipedia.org/wiki/TINA_(program)#Versions
TINA v12 (2018): commerical, mixed-signal, $1200

https://www.tina.com/

Output graph quality acceptible

TINAcloud: online TINA, free online

https://www.tina.com/tinacloud/

TINA-TI: freeware, special version of TINA licensed to Texas Instruments

https://www.ti.com/tool/TINA-TI

Output graph quality 보통, 다양한 해석, 가상오실로스코프, 함수발생기, Spice 모델, 블록 다이어그램 마법사

Infineon Designer: free online, special version of TINAcloud licensed to Infineon Technologies

https://www.infineon.com/cms/en/tools/landing/ifxdesigner.html

Not much contents on Youtube

TINA Pro v12, TINA Design Suite: commercial, powerful circuit simulation package for analyzing, designing, and real time testing of analog, digital, VHDL, MCU, SMPS, RF, communication, optoelectronic and mixed electronic circuits and their PCB layouts, can import standard spice models), better than (LTSpice has more components, but GUI is not better)

설명: 설명: 설명: http://www.designwareinc.com/img/T4U_AC.GIF

TinaCloud: Best online circuit simulator, not free

설명: 설명: 설명: Tina Cloud online circuit simulator

[Xpedition Enterprise: commercial, EDA, multi-board

System-level, connectivity, team design, schematic design, model library management, EMC compliance and signal integrity (EM analysis with BEM), power integrity, PCB layout, advanced PCB routing, concurrent engineering, 3D PCB layout, ECAD-MCAD co-design, design rule checking, thermal analysis, vibration analysis, design for manufacturing and assembly, EDM data management

Web, https://www.mentor.com/pcb/xpedition/

$70,000

Orginally Mentor Graphcis, now a bSiemens company

Enterprise-grade EDA software companies: Top 6

Synopsys, Cadence, Mentor Graphics, Silvaco, Atium

PADS Professional: PCB Design

5. Minor Tools Listing

5Spice: free, business closed, Youtube tutorial, easy to use, simple, output graph good

AIM-Spice v5.6: $190, text-based circuit input

AllTech Communications:

Autodesk Circuits: free, web-based, MCU + electronics, PCB layout

Audodesk EAGLE: EDA

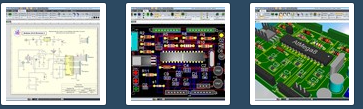

AutoTRAX DEX: commercial, pcb design, schematic capture, automatic 3D model generation

B2.Spice A/D: commercial

BOOR: free, open-source digital logic simulation

CircuitMaker

Circuit Diagram

CircuitLab: free, personal, web-based, circuit simulation

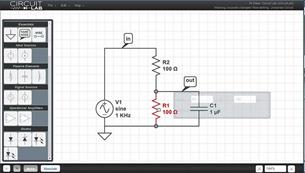

설명: 설명: 설명: CircuitLab online circuit simulator

CircuitLogix: spice-based, $295

CircuitPlusPlus: free, simulation

Circuits js1 (Circuit Simulator): free, web-based, current animation

Circuit Simulator

Circuit Solver Web: circuit simulation, android circuit simulation

Circuit Tree: free personal, basic free, others not free, schematic capture, PCB layout

Circuit Wizard: spice-baded simulator

DesignSpark PCB: free, schematic, PCB layout

DipTrace

DoCircits

EasyEDA: free, web-based, schematic capture, Ngspice-based, PCB layout, PCB manufacturing

설명: 설명: 설명: easyeda online circuit simulator

ECStudio

eSim: free

EveryCircuit

gEDA Project: free, schematic capture, simulation, prototyping, ngSpice, gnuCAP

GnuCap

iCircuit: commercial

KiCad

Ktechlab: free, IDE, MCU and electronics, circuit simulation, program development, simulation of MCU+circuits

LibrePCB: EDA under development

Livwire: circuit simulation

LogicCircuit: free, educational, digital logic simulation

Lushprojects: free, web-based, current animation

MacSpice

McCAD 3SPICE

Ngspice: free, open source

NL5: commercial, mixed-signal, simulator, ideal and piecewise-linear components

OmniGlyph: commercial

Oregano

ParSim: Free, online

설명: 설명: 설명: PartSim online Circuit Simulator

PCB Artist: free personal

PCBWeb

PCB Wizard: commercial

PECS

Proteus: Basic and advanced versions

Proteus: commercial, PCB design, circuit simulation, visual designer

PSIM: power electronics

QUCS: free, circuit simulation including RF, output graphic quality good

Qucs-S: free, spice

QucsStudio

Qucsis

QuickCopper: free, Android

Schematics: free personal, web-based, personal circuit saving directory, many chip manufacturers' reference designs, advanced users

Simetrix: spice-based simulator

SimScale

SimulIDE: free, electronics + MCU

Solve Elec

SpiceOpus v2.25: free, based on SPCE 3f4, XSPICE

http://fides.fe.uni-lj.si/spice/license.html

Sprint-Layout

TinyCAD: free

TopSpice 8.30c: Hspice + Spice, $800, 30k components

Upverter: schematic capture, PCB layout

VBB4Arduino: discontinued

VUTRAX

XSPICE: Georgia Tech. developed

Xyce: free open source, mixed-signal, Sandia National Lab

Extremely large circuit, large-scale parallel computing platforms

Web, https://xyce.sandia.gov/
